Self-Coloured - Bolt Type

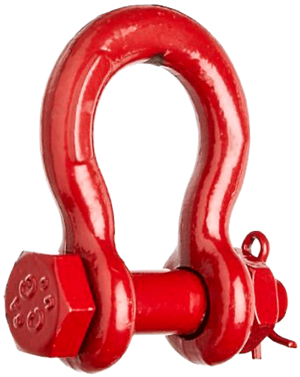

Crosby Bolt Type Anchor Shackles

Crosby Bolt Type Anchor Shackles - Self-Coloured

CRS2130

Capacities 1/3 through 150 metric tons, grade 6. Working Load Limit and grade “6” permanently shown on every shackle. Forged – Quenched and Tempered. Self Coloured.

Fatigue rated (1/3t - 55t). Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F). Meets or exceeds all requirements of ASME B30.26.

Shackles 120 metric tons and larger are proof tested, Magnetic Particle Inspected and provided with Serialized Pin and Bow. Type Approval and certification in accordance with ABS 2006 Steel Vessel Rules 1-1-17.7, and ABS Guide for Certification of Cranes. 3.1 Certification as standard available for charpy and statistical proof test for pg 79 only up to 25 tons to
DNV2.7-1 and EN13889.

These Crosby shackles are statistical proof and impact tested to 42 joules (31 ft-lbs.) min. ave. at -20 degree C (-4 degree F). The tests are conducted by Crosby and 3.1 test certification is available upon request. Refer to page 76 for Crosby COLD TUFF® shackles that meet the additional requirements of DNV rules for certification of lifting applications - Loose Gear.

All other 2130 and all 2150 shackles can meet charpy requirements of 42 joules (31 ft-lbs) avg at -20 degree C (-4 degree F) upon special request. Look for the Red Pin® . . . the mark of genuine Crosby quality.

CR2130 Diagram

* Select the desired product below to compile your quote

Size
WLL
A
B
C
D
E
F
H
L
N
Weight
Product

3/16"
0.33 T
0.4"
0.3"
0.9"
0.2"
0.6"
0.6"
1.5"
1"
0.2"
0.1 lb
CRS2130-003
1/4"
0.5 T
0.5"
0.3"
1.1"
0.3"
0.8"
0.6"
1.8"
1.3"
0.3"
0.1 lb
CRS2130-004
5/16"
0.75 T
0.5"
0.4"
1.2"
0.3"
0.8"
0.8"
2.1"
1.5"
0.3"
0.2 lb
CRS2130-005
3/8"
1 T
0.7"
0.4"
1.4"
0.4"
1"
0.9"
2.5"
1.8"
0.4"
0.3 lb
CRS2130-006
7/16"
1.5 T
0.8"
0.5"
1.7"
0.4"
1.2"
1.1"
2.9"
2"
0.4"
0.5 lb
CRS2130-007
1/2"
2 T
0.8"
0.6"
1.9"
0.5"
1.3"
1.2"
3.3"
2.3"
0.5"
0.8 lb
CRS2130-008
5/8"
3.25 T
1.1"
0.8"
2.4"
0.6"
1.7"
1.5"
4.2"
2.9"
0.7"
1.7 lb
CRS2130-010
3/4"
4.75 T
1.3"
0.9"
2.8"
0.8"
2"
1.8"
5"
3.5"
0.8"
2.7 lb
CRS2130-012
7/8"
6.5 T
1.4"
1"
3.3"
0.9"
2.3"
2.1"
5.8"
4"
1"
4 lb
CRS2130-014
1"
8.5 T
1.7"
1.2"
3.8"
1"
2.7"
2.4"
6.6"
4.7"
1.1"
5.7 lb
CRS2130-100
1-1/8"
9.5 T
1.8"
1.3"
4.3"
1.1"
2.9"
2.7"
7.5"
5.2"
1.3"
8.3 lb
CRS2130-102
1-1/4"
12 T
2.0"
1.4"
4.7"
1.3"
3.3"
3"
8.3"
5.8"
1.4"
11.7 lb
CRS2130-104
1-3/8"
13.5 T
2.3"
1.5"
5.3"
1.4"
3.6"
3.3"
9.2"
6.4"
1.5"
15.8 lb
CRS2130-106
1-1/2"
17 T
2.4"
1.7"
5.8"
1.5"
3.9"
3.6"
10"
6.9"
1.6"
20.8 lb
CRS2130-108
1-3/4"
25 T
2.9"
2"
7.0"
1.8"
5"
4.2"
12.3"
8.8"
2.3"
33.9 lb
CRS2130-112
2"
35 T
3.3"
2.3"
7.8"
2.1"
5.8"
4.8"
13.7"
10.2"
2.4"
52.3 lb
CRS2130-200
2-1/2"
55 T
4.1"
2.8"
10.5"
2.7"
7.3"
5.7"
17.9"
12.8"
3.1"
98.3 lb
CRS2130-208
3"
85 T
5"
3.3"
13"
3.1"
7.9"
6.5"
21.5"
14.6"
3.6"
154 lb
CRS2130-300



Contact your regional Sling-Choker sales representative to request a quote or any additional information
