13326 Shurloc Swivel Hook with Bearing

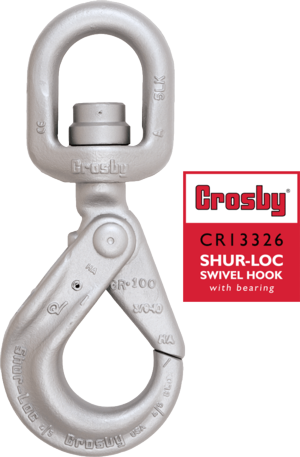

Shur-Loc Swivel Hook with Bearing

Shur-Loc Swivel Hook with Bearing - Crosby

CR13326

Suitable for frequent rotation under load, 13326 SHUR-LOC® hooks with bearings feature:

  • Forged Alloy Steel - Quenched and Tempered
  • Individually Proof Tested at 2-1/2 times the 4:1 Working Load Limit with certification
  • Recessed trigger design is flush with the hook body, protecting the trigger from potential damage
  • Easy to operate with enlarged thumb access
  • Positive Lock Latch is Self-Locking when hook is loaded
  • Rated for both Wire Rope and use with Grade 80/100 Chain
  • G-414 Heavy Thimble should be used with wire rope slings
  • Trigger repair Kit available (S-4316). Consists of spring, roll pin and trigger
  • S-13326 Swivel Hook utilizes anti-friction bearing design which allows hook to rotate freely under load
  • Fatigue rated
  • The SHUR-LOC® hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B)

CR13326 Diagram

* Select the desired product below to compile your quote

Chain Size (in)
Chain Size (mm)
WLL (4:1)
Wire Sling Size
WLL (5:1)
A
B
C
D
E
F
H
J
L
AA
Weight
Product

-
6 mm
3,200 lbs
5/16"
2,560 lbs
1.5"
1.14"
6.17"
0.79"
2.6"
0.67"
0.5"
0.63"
1.13"
1.5"
1.5 lbs
CR13326-06
1/4" - 5/16"
7-8 mm
5,700 lbs
7/16"
4,560 lbs
1.75"
1.52"
7.54"
1.1"
3.5"
0.87"
0.63"
0.81"
1.44"
2"
3.1 lbs
CR13326-08
3/8"
10 mm
8,800 lbs
1/2"
7,040 lbs
2"
1.61"
8.88"
1.16"
4.35"
1.1"
0.75"
0.94"
1.83"
2.5"
5.26 lbs
CR13326-10
1/2"
13 mm
15,000 lbs
3/4"
12,000 lbs
2.5"
2.03"
11.11"
1.66"
5.45"
1.26"
1"
1.16"
2.19"
3"
11.22 lbs
CR13326-13
5/8"
16 mm
22,600 lbs
7/8"
18,000 lbs
2.75"
2.25"
12.9"
2.05"
6.56"
1.5"
1.13"
1.5"
2.61"
3.5"
17.32 lbs
CR13326-16

 *Ultimate load is 4 times the Working Load Limit (WLL) based on Grade 100 chain



Contact your regional Sling-Choker sales representative to request a quote or any additional information
