Long Reach Shackles
Long Reach Shackles - Screw Pin and Bolt-Type - Columbus McKinnon
CM71 (Screw Pin)

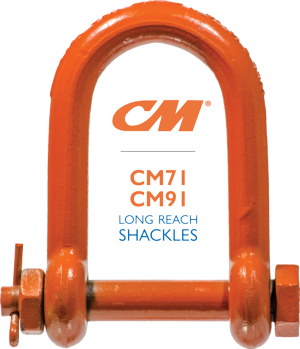

CM91 (Bolt-Type)
Long reach shackles care excellent options for applications when standard rigging hardware simply cannot reach as far as needed. When space is at a premium, long reach shackles may eliminate the need for extra hardware when connecting.
- Rated for overhead lifting
- Alloy steel
- Load rated
- WLL forged on body
- Do not exceed working load limit
- Offered in self-colored or orange urethane finish
Size |
WLL |
D |
G |
L |
P |
W |
Screw Pin - Self Coloured |
Screw Pin - Orange |
Bolt Type - Self Coloured |
Bolt Type - Orange |
5/8" |
7,000 lbs |
0.63" |
1.57" |
4" |
0.75" |
2.25" |
CM7151 |
CM7151P |
CM9151 |
CM9151P |
3/4" |
10,000 lbs |
0.75" |
1.81" |
5" |
0.88" |
2.75" |
CM7152 |
CM7152P |
CM9152 |
CM9152P |
1" |
19,000 lbs |
1" |
2.38" |
5.5" |
1" |
3.25" |
CM7154 |
CM7154P |
CM9154 |
CM9154P |
1-1/4" |
28,000 lbs |
1.25" |
3.06" |
6.19" |
1.38" |
3.88" |
CM7156 |
CM7156P |
CM9156 |
CM9156P |
1-1/2" |
34,000 lbs |
1.5" |
3.5" |
7" |
1.5" |
4.5" |
CM7157 |
CM7157P |
CM9157 |
CM9157P |
1-3/4" |
50,000 lbs |
1.75" |
4" |
8" |
2" |
5.25" |
CM7177 |
CM7177P |
CM9177 |
CM9177P |
